HM fAN SERIES
HM Series Fans utilize the optimized blade design of the Horton HTEC fan family while providing the reduced weight of the standard Horton molded blade. This combination allows efficient, customizable performance to meet your cooling needs in high-range fan diameters.
Applications
- Compressors
- Construction Equipment
- Excavators
- Forestry
- Fracking Units
- Generator Sets
- Variety of other off-highway equipment
Flexible design for diverse applications
— Multiple blade counts and center-disk diameters
— Custom pilots and bolt circles for easy integration
— Compatible with Horton and competitive fan drives
Customizable configurations
— 14-blade options with equal or unequal spacing
— Straight or tapered bores to match specific setups
Efficient, high-volume airflow
— Optimized blade design boosts airflow and cooling performance
— Supports large diameters from 65 to 96 inches
Built for rugged performance
— Handles tip speeds up to 22,000 ft/min
— Ideal for compressors, generator sets, and fracking units
Lightweight and durable
— Molded blades reduce weight without sacrificing strength
— Reliable in demanding off-highway conditions
Specifications
| HM 2500 Series | HM 1400 Series | |
|---|---|---|

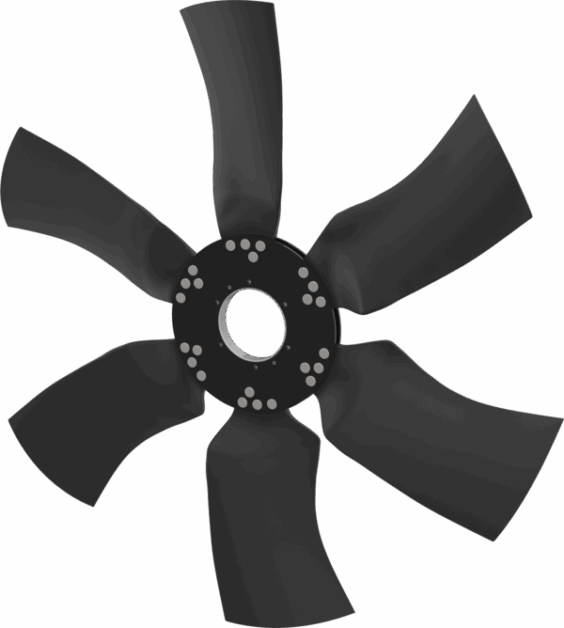

| Description | The HM2500 fan combines the advanced, aerodynamic blade design of Horton’s HTEC fan family with the lightweight durability of Horton’s proven molded nylon construction. Engineered for large-diameter applications, the HM2500 delivers powerful, efficient airflow and customizable performance to meet the demanding cooling needs of high-horsepower equipment. | The HM1400 fan utilizes the optimized blade design of the HTEC fan family while providing the reduced weight of the proven Horton nylon. This combination allows efficient, customizable performance to meet your cooling needs in mid-range fan diameters |
| Diameter | 1,651 – 2,438 mm [65 – 96 in.] | 889 – 1,422 mm [35 – 56 in.] |
| Pilot and Mounting | Customized to application requirements, including straight and tapered bores | Customized to application requirements, including straight and tapered bores |
| Blade Configurations | 14 blades, equally or unequally spaced | 5 to 15 blades, equally or unequally spaced |
| Maximum Pitch Width | 251.3 mm [9.9 in.] | 109 mm [4.3 in.] |
| Maximum Top Speed | 112 m/s [22,000 ft/min] | 112 m/s [22,000 ft/min] |
Recommended Drives
RCV250
Variable speed with a light, compact and reliable design allows the RCV250 to turn larger fans that require higher torque while maximizing efficiency and requiring zero maintenance.
